Description
Certificate of Conformity SPF-5000-ES-CISPR32-ClassA-CE-EMC-cert-1
in stock available

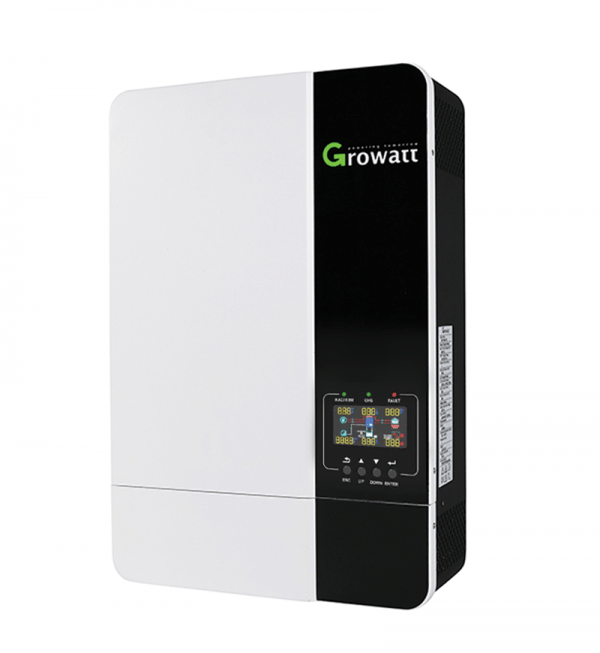

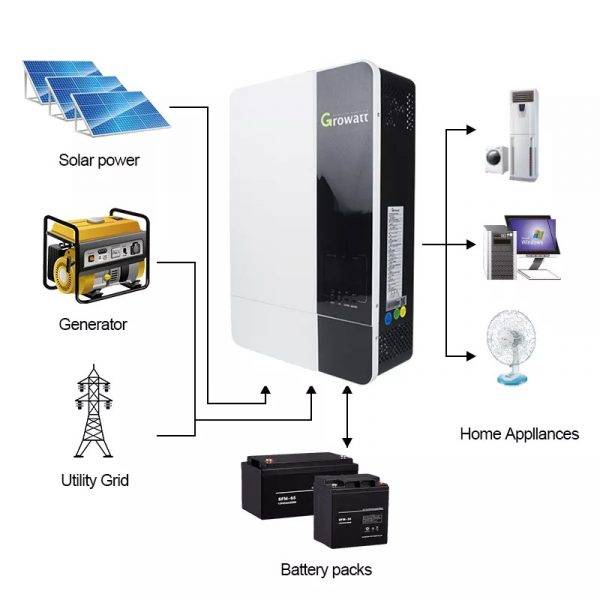

The Growatt SPF 5000 ES is a HF off-grid inverter in the lower price segment, which makes it suitable for workshops, batches or site offices applications. Its integrated MPPT charger is high voltage DC capable of up to 450VDC to run either with a 48VDC battery but also without. This unit can connect with a AC power source that powers the internal charger. Different programs and priorities can be set e.g. charging preferring grid charging (UPS modus) or solar for self consumption optimisation.
This unit works well with our Jinergy 550W or 450W PV modules of up to 8 panels in a string and we recommend the Narada 6REXC300 battery but there is no reason not to increase capacity with the REXC600 or even REXC1000.

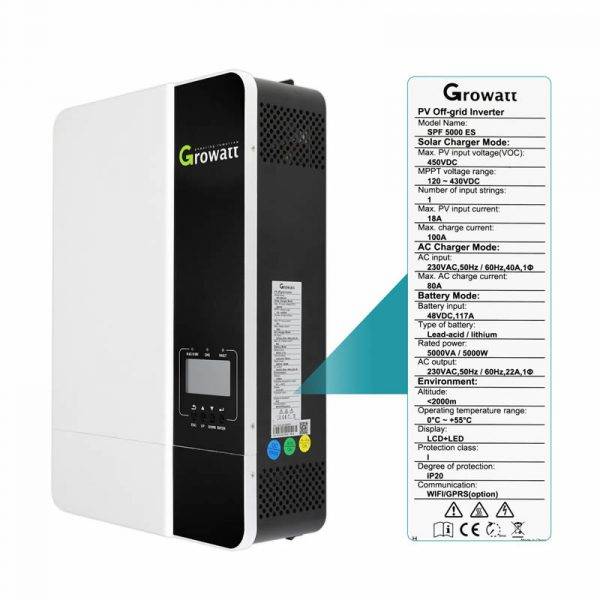

Technical Data
Model: Growatt SPF 5000 ES
Battery Voltage: 48VDC
Battery Type: Lithium/Lead-acid/AGM/GEL
Rated Power: 5000VA/5000W
Parallel Capability: Yes, 6 units maximum
Waveform: Pure sine wave
Maximum PV Array Power: 6000W
MPPT Range @ Operating Voltage: 120VDC ~ 430VDC
Maximum PV Array Open Circuit Voltage: 450VDC
Maximum Solar Charge Current: 100A
AC Charge Current: 80A
Dimensions: 330x485x135mm
Weight: 12kg
This unit does not require to be registered at the power companies but has to be installed by a certified electrician who should provide you a certificate of compliance (CoC) to be legally operated in New Zealand.
